Visualizing results

Once your GWAS is complete, you might want to analyze its summary statistics. Here, we provide code to compute a Manhattan plot and a QQ plot from your results.

Generatating plots

We propose the following code, as a way to see how such plots are made.

Please keep in mind this code is not really optimized, but shoudl run decently quickly on big data. We suggest using other softwares with which you are more familiar, or that you know are faster.

"""Generate Manhattan plot and QQ plot from GWAS summary statistics."""

import numpy as np
import matplotlib.pyplot as plt

def read_results(phenotype, software):
    """ Parse GWAS result file and get values.

    Parameters
    ----------
    phenotype : str
        Phenotype name.
    software : str { 'p', 'r'}
        Either 'p' for PLINK2 or 'r' for regenie,
        to correctly format the file.

    Returns
    -------
    list
        Chromosome numbers.
    list
        Transformed p-values (-log10).
    """
    chroms = []
    pvals = []

    # Software specific format.
    if software == 'p':
        chrom_name = "#CHROM"
        p_name = "P"
        softname = "plink"
    elif software == 'r':
        chrom_name = "CHROM"
        p_name = "LOG10P"
        softname = "regenie"
    filename = f"{softname}_sumstat_{phenotype}.tsv"

    with open(filename, 'r') as glm:
        for line in glm:
            columns = line.split()
            if line.startswith(chrom_name):
                chrom_id = columns.index(chrom_name)
                p_id = columns.index(p_name)
            else:
                chroms.append(int(columns[chrom_id]))
                if software == 'p':
                    pvals.append(-np.log10(float(columns[p_id])))
                elif software == 'r':
                    pvals.append(float(columns[p_id]))

    return chroms, pvals

def manhattan_plot(chroms, pvals, phenotype, software):
    """ Generate Manhattan plot.

    Parameters
    ----------
    chroms : list
        Chromosome numbers.
    pvals : list
        Transformed p-values (-log10).
    phenotype : str
        Phenotype name.
    software : str { 'p', 'r'}
        Either 'p' for PLINK2 or 'r' for regenie,
        to correctly format the file.

    Returns
    -------
        Manhattan plot.
    """
    # Software specific format.
    if software == 'p':
        softname = "plink"
    elif software == 'r':
        softname = "regenie"
    output = f"{softname}_{phenotype}_Manhattan_plot.png"

    chrom_distrib = {}
    colors = []
    for chrom in chroms:
        chrom_number = chrom
        # Specify color
        if chrom_number%2 == 0:
            colors.append("darkgray")
        else:
            colors.append("black")

        # Track chromosome number
        if chrom_number not in chrom_distrib:
            chrom_distrib[chrom_number] = 1
        else:
            chrom_distrib[chrom_number] += 1

    # Plot
    plt.figure(figsize=(10, 8), dpi=330)
    plt.scatter(range(len(chroms)), pvals, color=colors, s=5)

    # Correct x axis
    istart = 0
    iend = 0
    x_ticks = []
    x_labels = []
    for chrom, number in chrom_distrib.items():
        # Update end idx
        iend += number

        pos = (istart + iend - 1) / 2
        x_ticks.append(pos)
        x_labels.append(chrom)

        # Update start idx
        istart = iend

    # Plot suggestive and significative thresholds
    plt.axhline(-np.log10(5e-5), linestyle="dotted", color="red")
    plt.axhline(-np.log10(5e-8), linestyle="dashed", color="red")

    # Plot info
    plt.xticks(ticks=x_ticks, labels=x_labels, rotation=90)
    plt.xlabel("Chromosome")
    plt.ylabel("$-log_{10}(p)$")

    # Save
    plt.savefig(output, bbox_inches="tight")
    plt.close()

def qq_plot(pvals, phenotype, software):
    """ Generate QQ plot.

    Parameters
    ----------
    pvals : list
        Transformed p-values (-log10).
    phenotype : str
        Phenotype name.
    software : str { 'p', 'r'}
        Either 'p' for PLINK2 or 'r' for regenie,
        to correctly format the file.

    Returns
    -------
        QQ plot.
    """
    # Software specific format.
    if software == 'p':
        softname = "plink"
    elif software == 'r':
        softname = "regenie"
    output = f"{softname}_{phenotype}_QQ_plot.png"

    # Sort p-values
    pvals.sort(reverse=True)

    # Expected values
    n = len(pvals)
    exp = -np.log10(np.arange(n, dtype=float) / n)

    # Plot
    plt.figure(figsize=(10, 8), dpi=330)
    plt.axline((0, 0), slope=1, color="red", linestyle="dashed", zorder=0)
    plt.scatter(exp, pvals, color="black", s=5, zorder=10)
    plt.xlabel("Expected $-log_{10}(p)$")
    plt.ylabel("Observed $-log_{10}(p)$")

    # Save
    plt.savefig(output, bbox_inches="tight")
    plt.close()

# Input
PHENOTYPE = "BMI"
SOFTWARE = 'p' # for PLINK2 or 'r' for regenie

# Read values
CHROMS, PVALS = read_results(PHENOTYPE, SOFTWARE)

# Manhattan Plot
manhattan_plot(CHROMS, PVALS, PHENOTYPE, SOFTWARE)
# QQ plot
qq_plot(PVALS, PHENOTYPE, SOFTWARE)

This command outputs 2 files:

• <software>_BMI_Manhattan_plot.png (~190 Ko) contains the Manhattan plot for the whole GWAS
• <software>_BMI_QQ_plot.png (~ 110 Ko) contains the QQ plot for the whole GWAS

This script should take between 5 and 10 minutes to compute both plots.

Expected plots

PLINK2

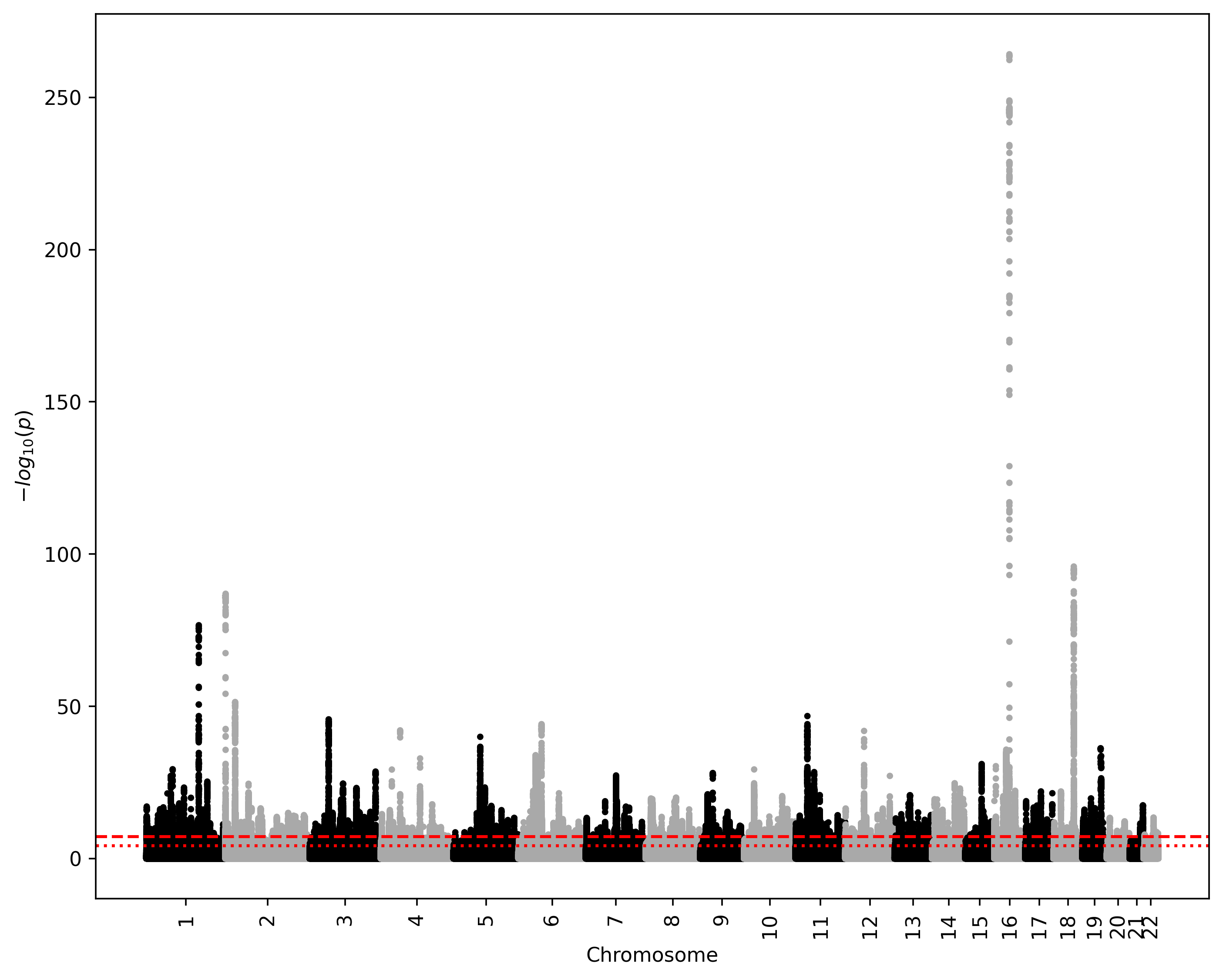

By the end of this tutorial, when using PLINK2, you should obtain the following Manhattan plot:

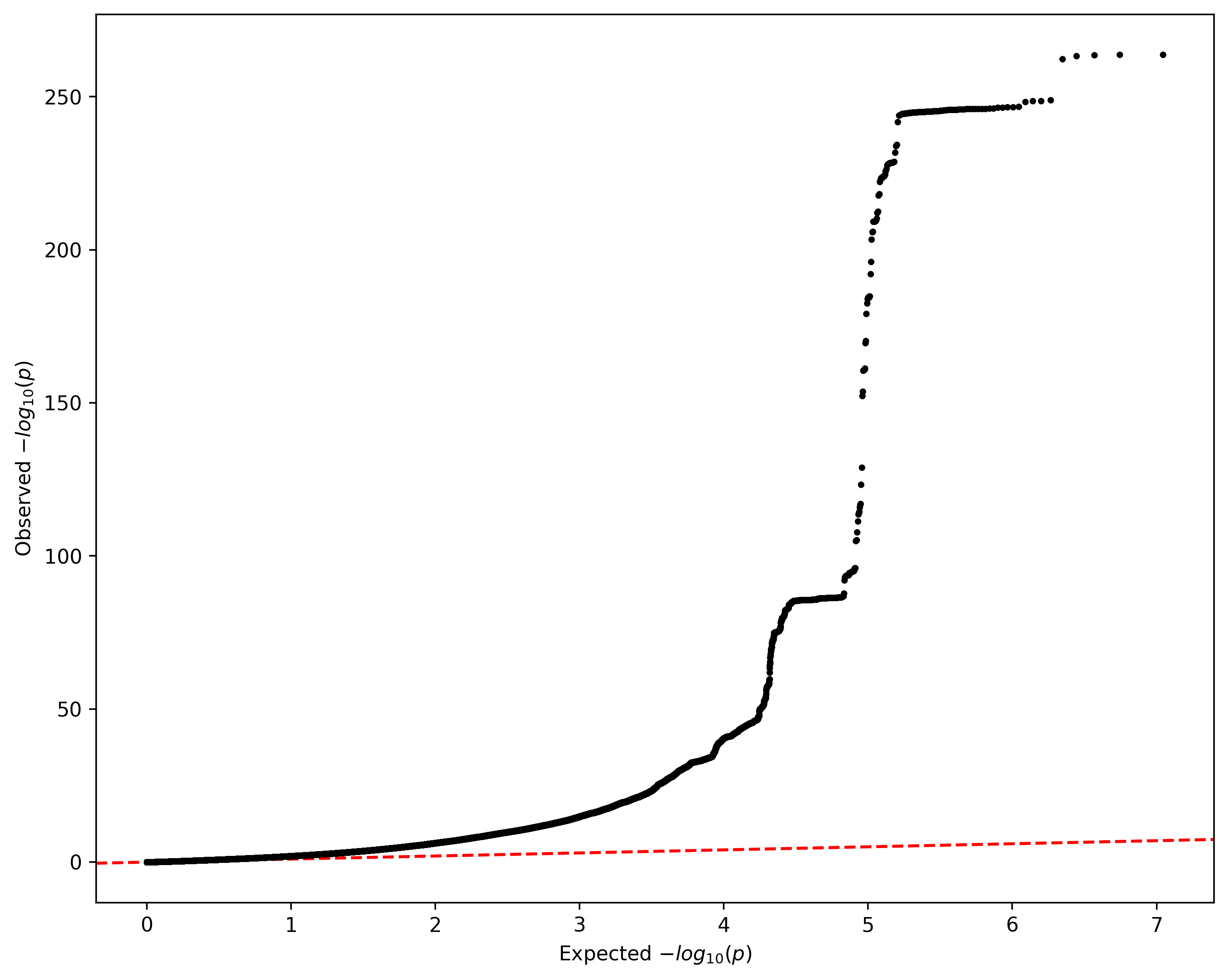

And the following QQ plot:

regenie

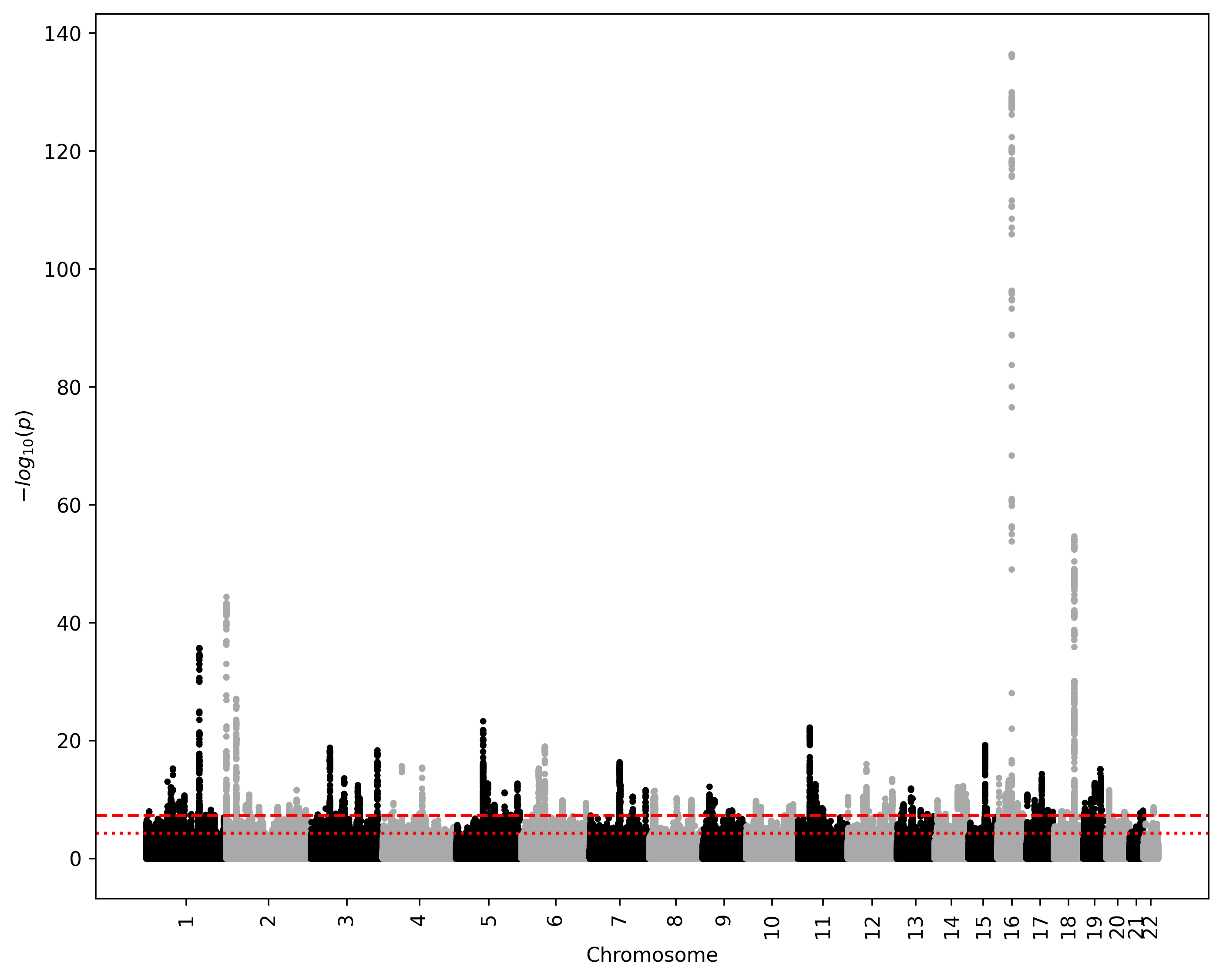

By the end of this tutorial, when using regenie, you should obtain the following Manhattan plot:

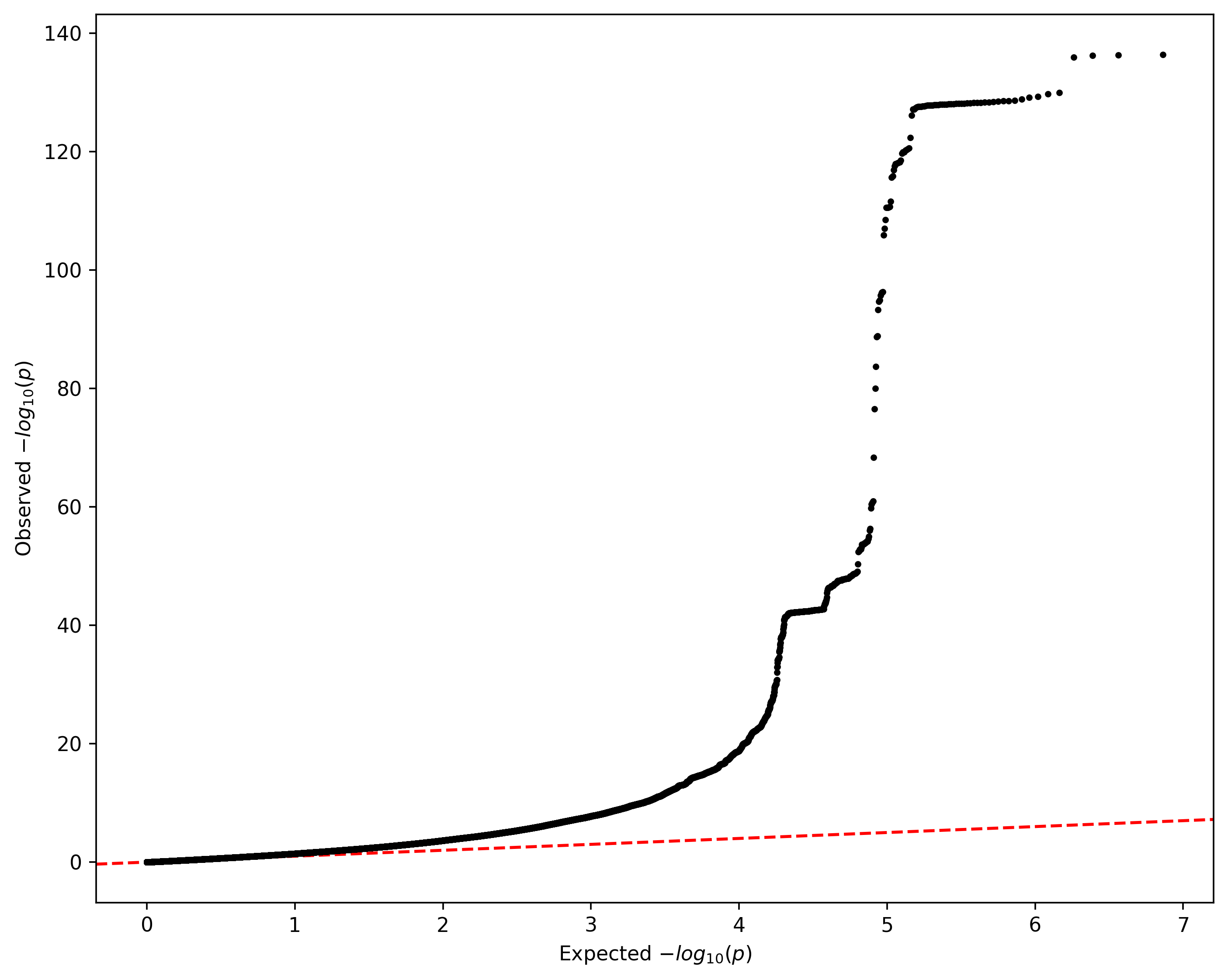

And the following QQ plot:
